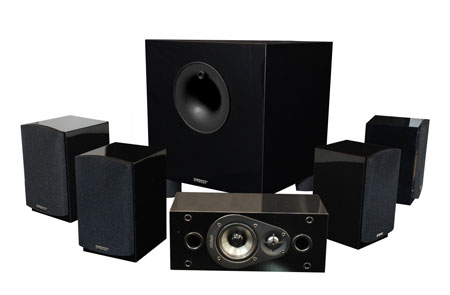

- Packaged 5.1
home theater system
- Compact speakers and subwoofer
look great with contemporary flat panels
- High-gloss black finish
has high-tech look
- Flat On-Axis Frequency Response with Wide Bandwidth
- Wide and Constant Dispersion
- Low Distortion and Resonance
- Patented Convergent Source Module (CSM) 3-inch poly-titanium woofer and .75-inch hyperbolic aluminum-dome tweeter
- the heart of Energy speakers
- Ribbed Elliptical Surround woofers
create high efficiency, low distortion
- An aluminum dome tweeter
for sonic accuracy
- Front and rear venting
for more powerful bass response
- Powerful 200-watt subwoofer with a front-firing port, 8-inch
driver and Ribbed Elliptical Surround™
for bass that you feel as
much as hear
|
 |
Satellite Speakers:
- Frequency Response:
115Hz-20KHz
- Crossover Point:
2.9 kHz
- Sensitivity: 89dB
- Power Handling:
100 Watts
- Recommended Amplifier
Power: 20 - 100 Watts RMS (Continuous)
- Impedance: 8-ohm
compatible
- Tweeter: ¾-inch
(19 mm) Hyperbolic™ aluminum-dome
- Woofer: 3-inch
poly-titanium
Center
Speaker:
- Frequency Response:
110Hz-20KHz
- Crossover Point:
2.9 kHz
- Sensitivity: 89dB
- Power Handling:
100 Watts
- Recommended Amplifier
Power: 20 - 100 Watts RMS (Continuous)
- Impedance: 8-ohm
compatible
- Tweeter: ¾-inch
(19 mm) Hyperbolic™ aluminum-dome
- Woofer: 3-inch
poly-titanium
Subwoofer:
- Frequency Response:
33Hz-150Hz +/- 3dB
- Power Handling:
200 Watts
- Subwoofer Variable Low
Pass Filter:
40Hz-150Hz @ 18dB/octave
- Woofer:
8” IM Cone with Patented Ribbed Elliptical Surround
|
 |
-
Satellite Speakers:
each, 2lbs
14oz (1.3kg)
- Center Speaker:
3lbs 3oz (1.5kg)
- Subwoofer:
19lbs 11oz (8.9kg)
|
 |
- Satellite Speakers: each, 6-7/8 x 4-1/8 x 4-1/8" (175 x 105 x 105mm)
- Center Speaker:
4-1/8 x 10-1/4 x 4-1/8" (105 x 260 x 105mm)
- Subwoofer: 12-5/8 x 12-5/8 x 12-5/8" (add 2-1/6" for feet) (320 x
320 x 320mm (add 55mm for feet))
|
